Elvoron CPL vertical platform lift
The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling. It looks and feels like a small elevator but costs much less. The Elvoron CPL is designed to provide access for people with disabilities in commercial buildings.
Simple constant pressure operation and swing door access ensure reliability and ease of operation for passengers.
Highlights:
- Low cost
- Reliable
- Variety of Finishes
- Custom Platform Sizes
- Smooth and Quiet Ride
- Full Height Cab
More information can be found in the Downloads
DownloadsElvoron CPL Photo Gallery
Finishes for the Garaventa Lift Elvoron CPL Model
Your Elvoron CPL will be a key feature of your building. Interior design and finish are important considerations. We offer a variety of attractive and durable wall and ceiling finishes as shown below. All lifts are supplied with basic plywood floors ready for installation of your preferred flooring material, as supplied by others.
Entrance Doors

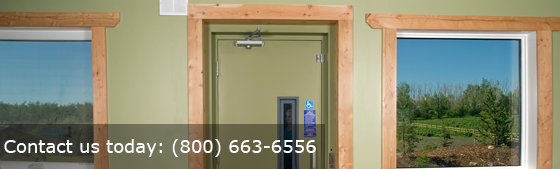

The Elvoron CPL is equipped with fire rated swing doors that are fitted with protective interlocks that allow the doors to open only when the car is at the landing. The doors also include a vision panel and time delay door closer. Optional power door operators are also available. CPL doors are supplied with a primer finish ready to be painted to match your decor.
Ceilings & L.E.D. Lighting
The CPL features a unique egg crate style ceiling as required by national safety codes for vertical platform lifts equipped with full height cabs. The perimeter of ceiling is fitted with 4 low voltage L.E.D. lamps that illuminate automatically. This perimeter ceiling area is available in white.
Handrail Choices
All Elvoron cars are equipped with one handrail on the control wall. The handrails are available in one standard finish or can be customized. Additional handrails can be mounted on the other car walls for extra passenger security.
- The Elvoron CPL Model is equipped with many standard features, setting it apart from the competition. Some of these features are listed below. For a complete list please contact Garaventa Lift or refer to the Elvoron CPL Design and Planning Guide.
- Available in 3 standard car sizes as well as custom sizes up to 21 square feet
- Standard Car Sizes:
- 36" x 60"
- 42" x 60"
- 48" x 60"
- Available in 5 landing door configurations, including multiple door configurations.
- Wide choice of laminate and melamine car wall panel colors.
- Choice of three car and wall fixture colors.
- 1:2 Cable Hydraulic Drive.
- Quiet submersed pump and motor.
- Two speed hydraulic valve for smooth start and stop.
- Standard rated load of 750 lbs. - optional up to 1400lbs (635kg).
- Standard travel speed of 30 feet per minute.
- Travel range: USA (A18.1) : 14ft (4.2 meters). Canada (CSA B355) : 23 ft (7.0 meters). Other heights : contact Garaventa Lift for more information.
- Make up to 6 stops or have a total of 6 landing doors.
- Constant pressure button operation (floor selective).
- Illuminated buttons and digital floor display.
- Automatic car lighting upon passenger entry.
- Recessed ceiling lighting using low-voltage halogen fixtures.
- Full length handrail located below the car operating panel (additional handrails can be added).
- Emergency backup power system for lights, locks and door operators.
- Emergency stop and alarm.
- Floor specific emergency battery lowering system.
- Emergency manual lowering system.
- Slack/broken cable safety brake device.
- Hoistway door interlocks.
- Solid car gate with safety switch.
- UL or CSA certified components.
Elvoron CPL Model Drive and Control System
The Elvoron Home Elevator by Garaventa Lift is an elevating system designed specifically for use in private residences. There is a choice of two drive systems available; hydraulic or in-line (machine room-less).
Drive System
- 1:2 Cable Hydraulic Drive
- Single stage hydraulic jack and two 3/8" cables
- Two speed control valve for smooth start and stop
- Submersed pump and motor assembly for quiet operation
- Low oil protection circuit
- Standard capacity of 750lbs (340kgs). Up to 1,400lbs (635kgs) where permitted
- Nominal travel speed of 30 feet per minute
- Maximum floor to floor travel: USA 14ft (4.2m) / Canada 23ft (7.0m)
- Constant pressure button operation (floor selective)
Did you know that the Elvoron CPL can be operated using environmentally friendly biodegradable hydraulic oil?
- Emergency backup power system for lights, locks and door operators.
- Emergency manual lowering system.
- Safety Brake System.
- Emergency stop and alarm.
- Automatic bi-directional floor leveling.
- Slack/broken cable safety brake device.
- UL or CSA certified components.
- Standard power supply is 230 VAC single phase, 30 Amps.
- Optional power supply is 208 VAC three phase, 20 Amps.
Specifications
| Rated Load: | Standard 750 lbs (340 kg) or 1,000 lbs (455 kg). Optional 1,400 lbs (635 kg)) | ||
| Speed: | 30 ft/min (0.15 m/s) nominal speed (USA). Optional 36 ft/min (0.18 m/s) nominal speed (Canada) | ||
| Power Supply: | Elevator: Standard 208 VAC 3 phase. Optional 230 VAC single phase. Lighting: 110 VAC single phase, 15 amps | ||
| Safety Features | Emergency battery lowering. Emergency manual lowering valve. Safety brake system Automatic bi-directional floor levelling. Emergency stop and alarm button in car. Final limit switch. | ||
| Doors: | Fire rated swing doors that are fitted with electro-mechanical interlocks. The doors also include a vision panel and UL listed 2-speed closer with adjustable back-check cushioning (meets ADA requirements). | ||
| Travel Range: | CSA B355: 23 ft (7.0 meters), A18.1: 14ft (4.2 meters) | ||
| Code Compliance: | ASME A18.1, CSA B355 | ||
| Popular Options: | Automatic door operators. Integrated hands free telephone. Custom car finishes. Additional handrails. Buffer springs (increases your pit depth) | ||
| Warranty: | 2 year standard warranty. Optional additional 5 year extended warranty (7 years) |
